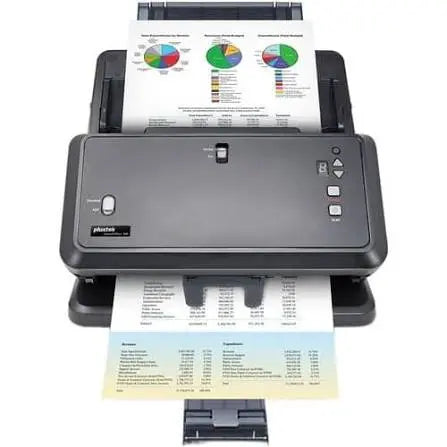

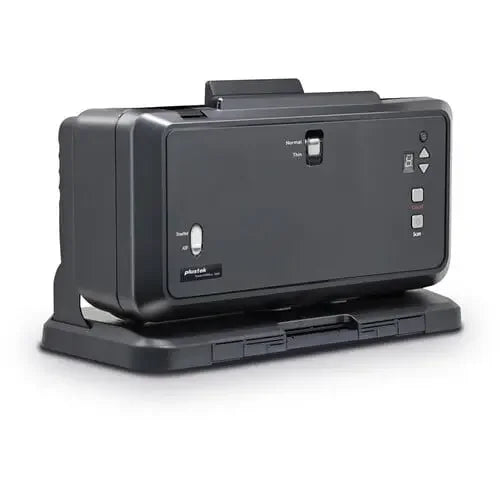

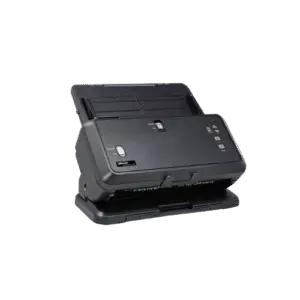

Plustek SmartOffice S60 A3 Document Scanner

This is Plustek's heavy-duty A3 document scanner, built for departments and offices that need to digitize large-format ledgers, engineering drawings, and stacks of standard paperwork without slowing down. It uses dual CIS sensors to scan both sides of a page in a single pass at up to 64 ppm, with a 100-sheet ADF and an 18,000-sheet daily duty cycle. The trade-off? It's strictly a USB machine with no network or standalone PC-free operation, and it requires a fairly robust PC to handle those speeds. But if you need fast, reliable A3 scanning tethered to a workstation, it's a serious workhorse.

Scan Performance

• Up to 64 ppm / 128 ipm (Color, 200 dpi, A4 Landscape)

• Up to 48 ppm / 96 ipm (Color, 300 dpi, A4 Portrait)

• Up to 36 ppm / 72 ipm (Color, 300 dpi, A3)

• Daily duty cycle: Up to 18,000 sheets

• Optical Resolution: 600 dpi (up to 1200 dpi interpolated)

• Image Sensor: Dual CIS (Contact Image Sensor) for simultaneous duplex scanning

• Color Depth: 48-bit input / 24-bit output; Grayscale: 16-bit input / 8-bit output

Paper Handling

• ADF Capacity: 100 sheets (A4/Letter, 70 g/m²), 50 sheets (A3), 20 business cards

• Maximum scan area: 304.8 × 5080 mm (12" × 200") — handles long paper like electrocardiograms

• Minimum scan area: 13.2 × 13.2 mm

• Acceptable Paper Weight: 40 to 220 g/m²

• Supports mixed batches, plastic ID cards (up to 1.2 mm thick), embossed cards, and folded documents

• 3-mode design: Storage Mode (reduces footprint by 50%), Normal Mode, and Special Mode for long paper

Connectivity

• USB 3.0 / USB 3.2 Gen 1 port (backward compatible with USB 2.0/1.1)

• No built-in Wi-Fi, Ethernet, or standalone operation — requires a direct PC connection

• TWAIN compliant driver included for integration with document management systems

Software & Features

• Bundled Software: Plustek DocAction, Plustek DocTWAIN, ABBYY FineReader (OCR)

• Built-in OCR converts paper into editable Word, Excel, or searchable PDF files

• 9 customizable one-touch function buttons

• Advanced Image Processing: Remove blank pages, merge pages, auto-rotate, split images, remove punch holes, image edge fill

Design & Power

• Dimensions: 405 × 272 × 297 mm

• Weight: 6.8 kg

• Power: 24 Vdc / 1.25 A

• Power in Sleep: 0.28 W (ENERGY STAR certified)

• Recommended PC Specs: Intel Core i7 3.2 GHz (4 cores or more), 4 GB RAM minimum (8 GB recommended), 6 GB disk space

Operating Systems

• Windows (various versions)

• Linux (for system integrators; contact Plustek sales)

In the Box

• Scanner, power adapter, software CD, setup guide, warranty card
