Sony FX3A Full-Frame Cinema Camera

Sony FX3A Full-Frame Cinema Camera (ILME-FX3A)

Platform & Performance

• Sensor: 35mm full-frame (35.6 × 23.8 mm) back-illuminated Exmor R CMOS

• Effective Pixels: Movie: Approx. 10.3 MP; Still image: Approx. 12.1 MP

• Total Pixels: Approx. 12.9 MP

• Processor: BIONZ XR

• Dual Base ISO: 800 / 12,800

• ISO Range (Movie): 80–102,400 (expandable to 409,600)

• Dynamic Range: 15+ stops (S-Log3)

• Lens Mount: Sony E-mount

Image Stabilization

• 5-axis in-camera sensor-shift image stabilization

• Active Mode image stabilization for video

• Anti-dust system with antistatic coating and ultrasonic vibration

Autofocus

• Fast Hybrid AF: Phase-detection + contrast-detection

• Sensitivity range: –6 EV to +20 EV (ISO 100, F2.0)

• Real-time Eye AF (human, animal) and Real-time Tracking

• AF illuminator: approx. 0.3 m to 3.0 m

Continuous Shooting (Stills)

• Up to 10fps (Hi+), 8fps (Hi), 6fps (Mid), 3fps (Lo)

• Electronic shutter: 1/8000 to 30 sec, BULB

• Flash sync: 1/250 sec

Video Recording

• 4K (QFHD): Up to 120p, 10-bit 4:2:2 internal

• Full HD: Up to 240p

• Formats: XAVC HS, XAVC S-I, XAVC S (4K and HD)

• RAW Output: 16-bit RAW via HDMI (4264 × 2408)

• Color Science: S-Cinetone, S-Log3, S-Gamut3.Cine, HLG

• CineEI Mode: Yes, for maximum image quality

• Custom LUT Import: Yes

• Built-in Cooling Fan: Yes, for uninterrupted recording

Viewfinder & Display

• LCD Monitor: 7.5 cm (3.0") TFT touch panel, 2,359,296 dots, vari-angle

• No Built-in EVF

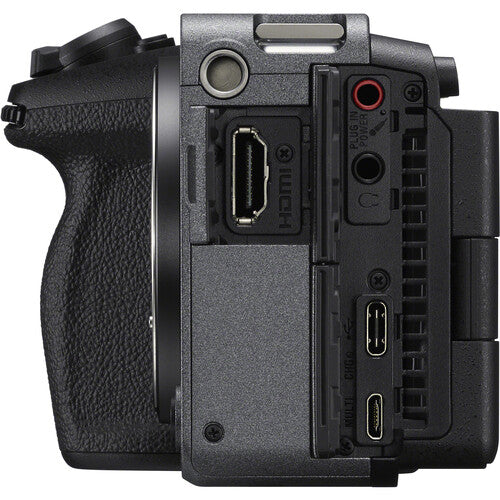

Connectivity & Ports

• HDMI Type-A (full-size)

• USB Type-C (SuperSpeed USB 5Gbps / USB 3.2)

• Multi/Micro USB terminal

• 3.5mm stereo microphone jack

• 3.5mm stereo headphone jack

• XLR Handle Unit with 2 × XLR inputs (digital audio interface)

• Wi-Fi (built-in)

• Dual media slots: CFexpress Type A / SD (UHS-II), simultaneous or relay recording

Audio

• 4-channel 24-bit 48 kHz LPCM audio recording via XLR handle

• Built-in microphone and speaker

Battery & Body

• Battery: NP-FZ100 rechargeable Li-ion

• Battery Life (CIPA): Approx. 95 min actual recording / 135 min continuous / 570 stills

• Power Consumption: Movie: approx. 7.3W; Still: approx. 3.5W

• Body Material: Magnesium alloy

• Operating Temperature: 0°C to 40°C

Dimensions & Weight

• Dimensions: 129.7 × 77.8 × 84.5 mm (body without protrusions)

• Weight: 630 g (body only); 715 g (with battery and memory card); 1.015 kg (with XLR Handle, battery, SD card)

In the Box

• Sony FX3A camera body

• XLR Handle Unit

• NP-FZ100 rechargeable battery

• Battery charger (BC-ZD1)

• Accessory shoe kit

• Body cap

• Accessory shoe cap

• Grip shoe cap

• Quick start guide

• Warranty card
