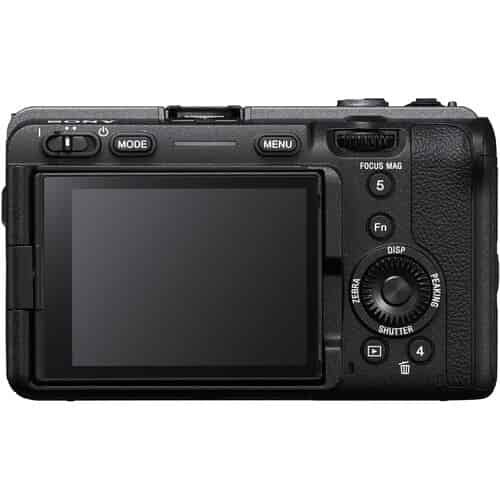

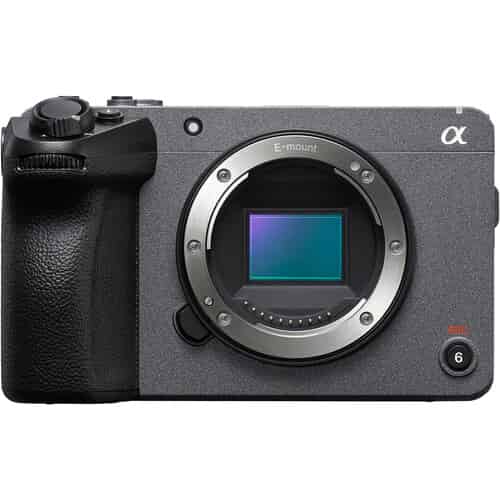

Sony FX30 Digital Cinema Camera

Sony FX30 Digital Cinema Camera (ILME-FX30)

Platform & Performance

• Sensor: APS-C type (23.3 × 15.5 mm) back-illuminated Exmor R CMOS

• Effective Pixels: Approx. 20.1 MP (movies), Approx. 26.0 MP (still images)

• Processor: BIONZ XR

• ISO Range: 100–32,000 (expandable 50–102,400 for stills)

• Lens Mount: Sony E-mount

• Dynamic Range: 14+ stops (S-Log3)

Image Stabilization

• 5-axis in-body image stabilization (sensor-shift)

• Modes: Active / Standard / Off (Movie); On / Off (Still)

Autofocus

• Fast Hybrid AF (phase-detection + contrast-detection)

• Focus points: 495 points (Movie), 759 points (Still)

• Sensitivity range: EV-3 to EV20 (ISO 100, F2.0)

• Real-time Eye AF (Human, Animal, Bird), Face Detection

Video Recording

• 4K (QFHD): Up to 120p (approx. 38% crop)

• Full HD: Up to 120p

• Formats: XAVC HS, XAVC S, XAVC S-I

• Bit Depth: 10-bit 4:2:2 internal recording

• RAW Output: 16-bit RAW via HDMI (4672 × 2628)

• Color Science: S-Cinetone, S-Log3, HLG

Viewfinder & Display

• LCD: 7.5 cm (3.0-type) touchscreen, approx. 2.36M dots, vari-angle (176° opening, 270° rotation)

• No Built-in EVF

Connectivity & Ports

• HDMI Type-A

• USB Type-C (USB 3.2)

• Multi Interface Shoe with Digital Audio Interface

• XLR Handle Unit: 2 × XLR/TRS inputs, 3.5mm stereo minijack

• Dual card slots: CFexpress Type A / SD (UHS-II)

• Wi-Fi, Bluetooth

Battery & Body

• Battery: NP-FZ100 rechargeable Li-ion

• Battery Life (CIPA): Approx. 115 min actual recording / 175 min continuous / 570 stills

• Body Material: Magnesium alloy

Dimensions & Weight

• Body Only: 129.7 × 77.8 × 84.5 mm

• Weight (Body Only): 562 g

• Weight (With Battery & Card): 646 g

• Weight (With XLR Handle, Battery & Card): 951 g

In the Box

• Sony FX30 camera body (ILME-FX30B) OR body + XLR Handle Unit (ILME-FX30)

• NP-FZ100 rechargeable battery

• AC adapter

• Power cord / plug adapter

• Body cap

• Accessory shoe cap

• USB-A to USB-C cable (USB 3.2)
