Nikon ZR Cinema Camera

Nikon ZR Cinema Camera

Platform & Performance

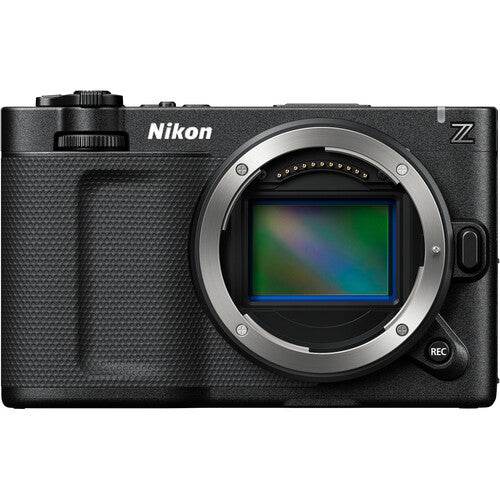

• Sensor: 35.9 mm × 23.9 mm full-frame (FX) partially stacked CMOS

• Effective Pixels: Approx. 24.5 MP

• Total Pixels: Approx. 26.79 MP

• Processor: EXPEED 7

• Dynamic Range: 15+ stops (N-RAW and N-Log); 14+ stops in other modes

• Base ISO: Dual native ISO 800 / 6400 (in R3D NE)

• Lens Mount: Nikon Z mount

• Flange Focal Distance: 16 mm (shortest among full-frame cameras)

Image Stabilization

• Not specified in available official sources

Autofocus

• 273 points of focal-plane phase-detection and contrast-detection AF

• Deep-learning AF system with subject detection

Video Recording

• Internal RAW: 6K/59.94p (R3D NE, N-RAW, ProRes RAW HQ)

• 4K: 4K/119.88p 12-bit RAW (R3D NE)

• 5.4K: 5.4K/60p

• Full HD: Up to 239.76p (10x slow motion)

• Formats: R3D NE, N-RAW, ProRes RAW HQ, ProRes 422 HQ, H.265, H.264

• Color Science: RED color science, REDWideGamutRGB, Log3G10, N-Log (Rec.2020), HLG

• Cinematic Video Mode: Dedicated preset with standardized shutter angle, frame rate, and color tone

• RED Imaging Recipes: 9 RED-curated looks available via Nikon Imaging Cloud

• Shutter Angle: Configurable from 5.6° to 360°

Audio

• 32-bit Float Recording: World’s first interchangeable-lens camera to support 32-bit float audio with built-in and external microphones

• Built-in Microphone: Powered by Nokia OZO Audio with five pickup patterns

• External Audio: 3.5 mm stereo mini-pin jack

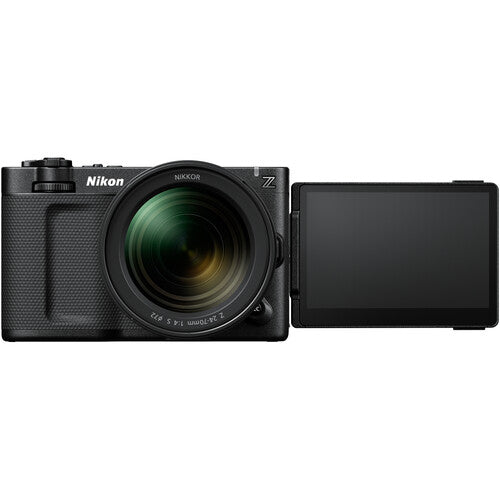

Monitor

• Size: 4.0 inches (10.16 cm)

• Resolution: Approx. 3070k dots

• Brightness: 1000 cd/m²

• Color Space: Full DCI-P3 coverage

• Mount: Vari-angle

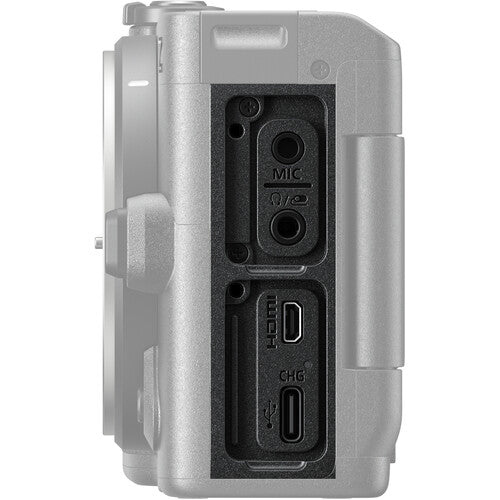

Connectivity & Ports

• Storage: Dual slots — CFexpress Type-B + Micro SD (UHS-I)

• Cloud Upload: Direct uploads via Frame.io through NX MobileAir

• Timecode: Bluetooth and wired timecode input (via external microphone/line input connector)

• File Naming: RED-style file naming convention adopted

Battery & Body

• Battery Life: Up to 125 minutes continuous recording (up to 360 minutes / 6 hours with firmware V1.10 in ProRes 422 HQ, H.265, H.264)

• Body Material: Dust-and-drip resistant magnesium alloy

• Cooling: Efficient heat dissipation for 2+ hours silent continuous recording without overheating

Dimensions & Weight

• Dimensions: 133 mm (W) × 80.5 mm (H) × 48.7 mm (D)

• Weight: Approx. 540 g (body only); approx. 630 g including battery and recording media

In the Box

• Nikon ZR camera body

• Battery

• Accessories (specific contents vary by region)
