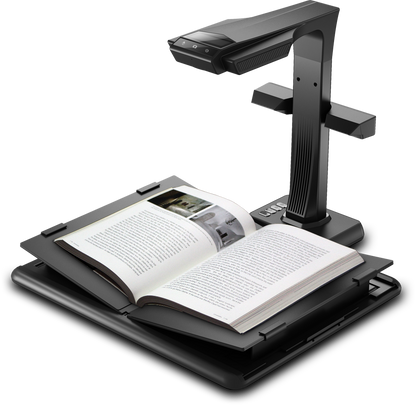

CZUR M3000 Pro V3 Professional A3 Book Scanner

This is CZUR's flagship professional overhead book scanner, built for libraries, archives, and government institutions that need to digitize thick, fragile bound volumes and large-format documents without cutting them apart. It features a 48MP HD CMOS camera and an ergonomic V-shaped book cradle that protects the spine, capturing a two-page spread in just 1.2 seconds. The standout feature is the combination of laser curve-flattening and dedicated anti-reflection side lights, which deliver flat, glare-free scans even from glossy paper. The trade-off is its size and weight—at 18 kg, it's a dedicated workstation, not a portable device—but for high-volume, damage-free archiving, it's an industrial-grade workhorse.

Scan Performance

• Scanner Type: Overhead document camera with V-shaped book cradle

• Image Sensor: 48MP HD CMOS

• Resolution: 7936 × 5952 pixels (470 DPI default)

• Scanning Speed: 1.2 seconds per double-page spread; approx. 40–100 pages per minute depending on workflow

• Maximum Scan Area: Flat single page up to A3 (420 × 297 mm); bound books up to A4

• Maximum Scanning Size: 480 × 360 mm

• Laser Flattening: 3 laser rays with Laser Curve Flattening 2.0 AI algorithm for automatic page flattening

• Lighting: Natural light, top LED lights, and dedicated side lights for anti-reflection

• On-Scanner Display: 2.4-inch LCD (4:3, 320 × 240) for real-time preview

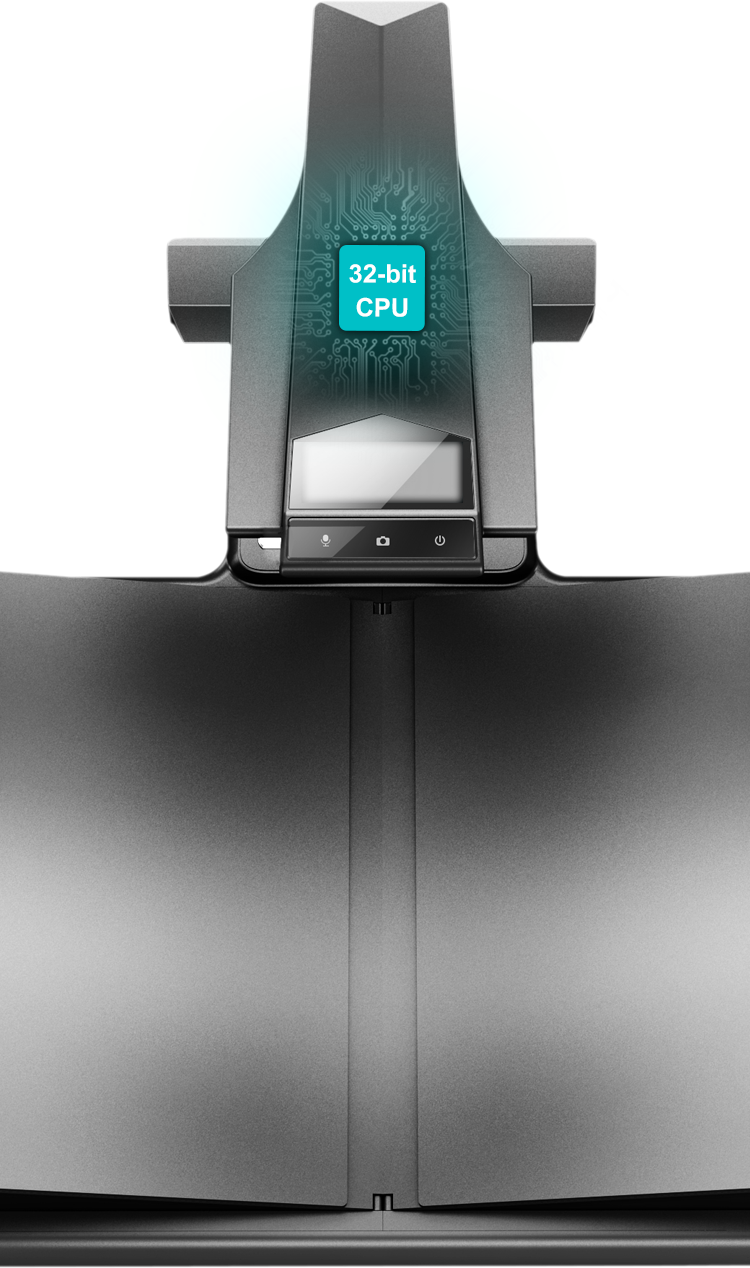

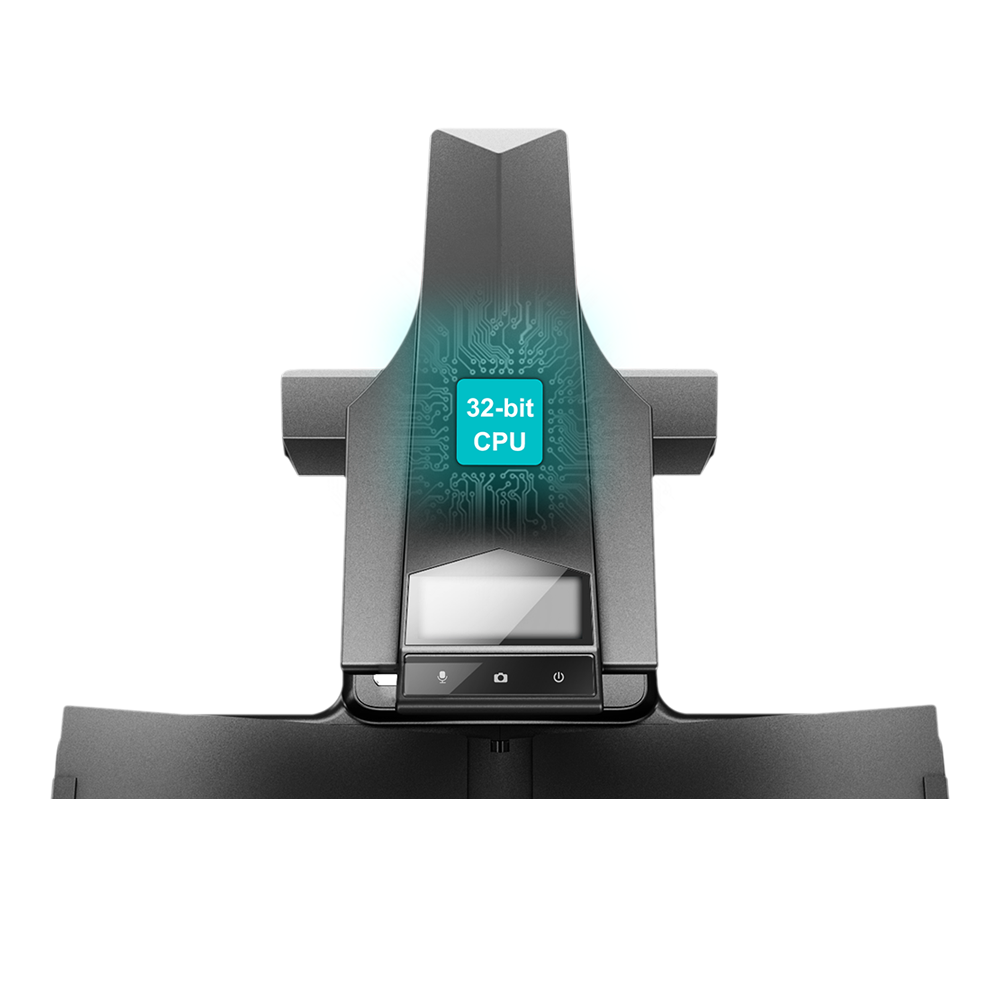

• Processor: Dual-core OpenRISC 32-bit CPU; 1G bit DDR image cache

Software & Features

• OCR Technology: ABBYY OCR supporting 180+ languages, including Arabic, Thai, Armenian, and Vietnamese

• Export Formats: JPG, PDF, Searchable PDF, TIFF, Word, Excel, PNG, BMP

• Image Processing: Auto curve flattening, smart tilt correction, auto-cropping, finger cot removal, auto combining sides, hole filling, antiquation mode for aged documents, background purification

• Batch Editing: Switch color mode, add watermark, crop, detect blank pages, standardize pages, OCR to Excel

• Trigger Methods: 4 ways — device control, PC software, external hand button, and foot pedal (all included)

• Auto Scan: Detects page turns and triggers the next scan automatically

• Video/Visualizer: HDMI 1.4 visualizer support for live projection; MJPG video streaming

Connectivity & Ports

• Interface: USB 2.0 High-Speed, HDMI 1.4 output

• SDK Support: Yes (for custom software development)

• TWAIN Driver: Supported

• Power Supply: External adapter (Input: 100–240V, 50/60Hz; Output: 9V / 1.5A)

PC System Requirements

• Windows: OS 7/8/10/11/XP SP3+; CPU Intel Core i7 (8th Gen+) @ 3.4GHz+ or AMD Ryzen (7th Gen+) @ 3.4GHz+; 8GB RAM minimum (16GB recommended); 20GB free disk space; 1366 × 768 minimum resolution

• macOS: OS 13 or later; CPU 2 GHz or higher; 2GB RAM minimum (8GB recommended); 20GB recommended storage; 1366 × 768 minimum resolution

Design & Build

• Material: Industrial-grade build with V-shaped book cradle

• Dimensions: 375 × 220 × 390 mm (folded)

• Weight: 18 kg

• Color: Black

In the Box

• CZUR M3000 Pro V3 Scanner

• V-Cradle

• Side lights

• Power adapter

• Hand button

• Foot pedal

• Black document pad

• Specialized finger cots

• USB cable

• User manual, warranty card, quality certificate

• Software download link
