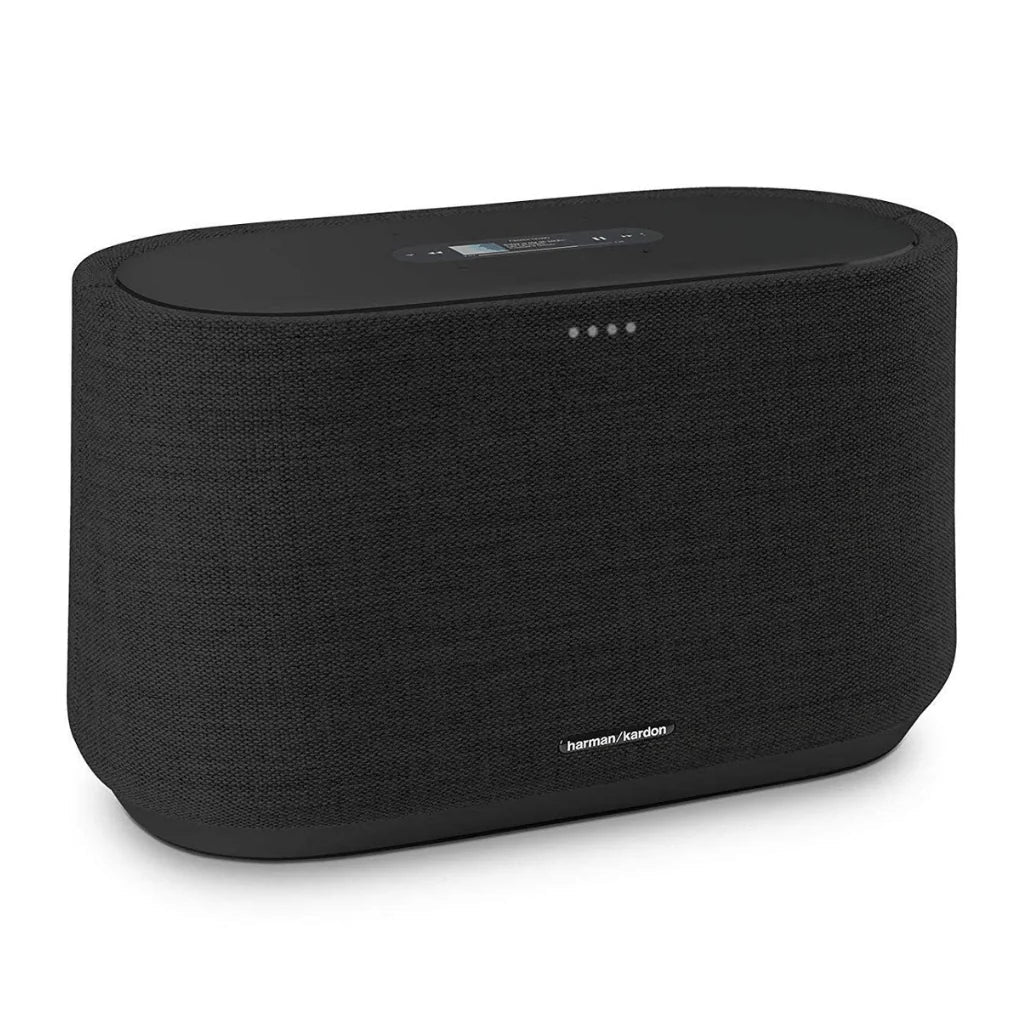

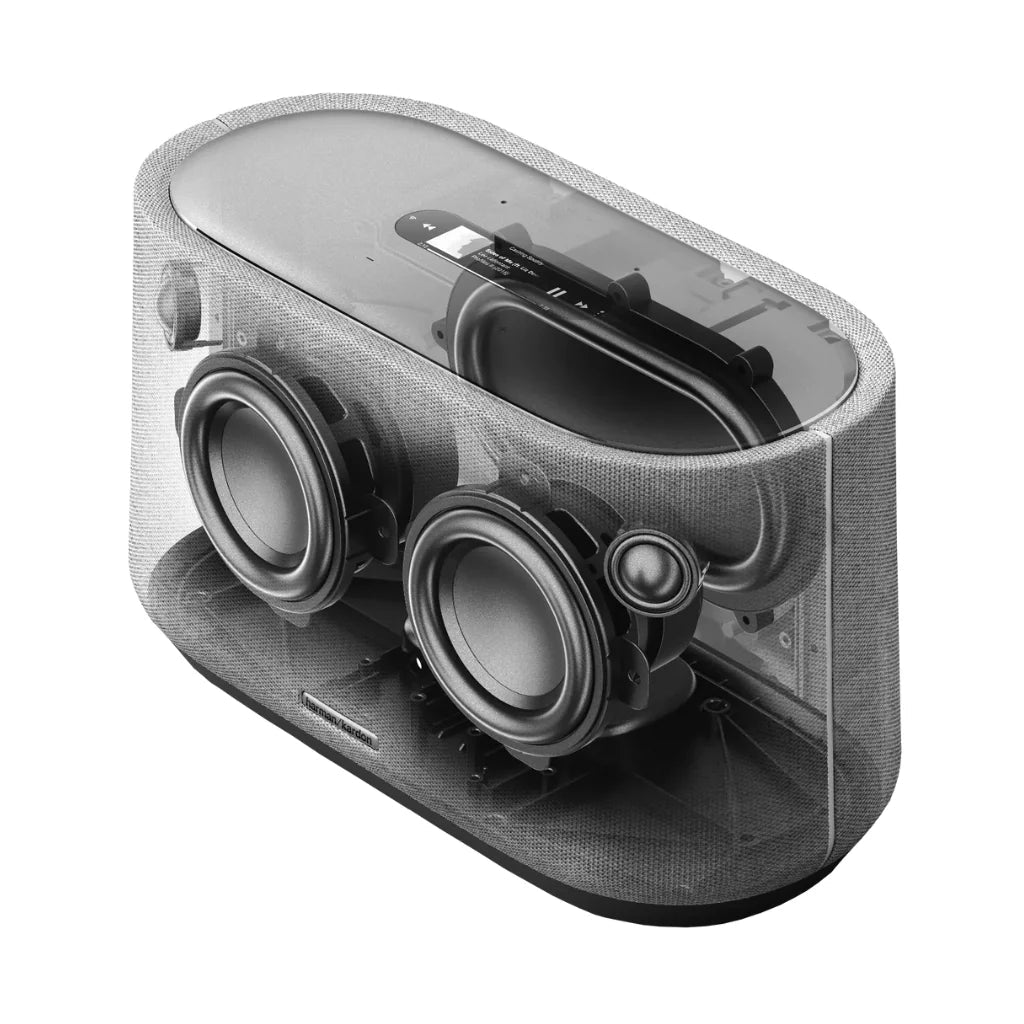

Harman Kardon Citation 300 Smart Stereo Speaker Parts

Platform & Performance

• Output Power: 100W RMS

• Signal-to-Noise Ratio: >80dB

• Transducer Configuration: 2 × 20mm tweeters, 2 × 89mm woofers

• Power Supply: 100–240V, 50/60Hz

• Power Consumption (Sleep Mode): <2.0 Watts

Audio

• Supported Audio Formats: HE-AAC, LC-AAC, MP3, Vorbis, WAV (LPCM), FLAC, Opus

• Stereo Sound: Room-filling stereo sound with rich bass

• Multi-Room Capability: Add additional Citation speakers for whole-house audio

Connectivity

• Wireless Network: 802.11 a/b/g/n/ac (2.4GHz / 5GHz)

• 2.4G Wi-Fi Transmitter Frequency Range: 2412 – 2472MHz

• 2.4G Wi-Fi Transmitter Power: <20dBm

• 2.4G Wi-Fi Modulation: DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM

• 5G Wi-Fi Transmitter Power: <23dBm

• 5G Wi-Fi Modulation: QPSK, BPSK, 16QAM, 64QAM, 256QAM

• 5G Wi-Fi Transmitter Frequency Range: 5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725 – 5.825GHz

• Bluetooth Version: 4.2

• Bluetooth Transmitter Frequency Range: 2402 – 2480MHz

• Bluetooth Transmitter Power: <10dBm

• Bluetooth Transmitter Modulation: GFSK, π/4 DQPSK, 8DPSK

• Chromecast: Built-in

• Stereo Pairing: Pair two Citation 300 speakers in the same room for true stereo sound

Smart Features

• Voice Assistant: Google Assistant built-in

• Microphone Mute: Physical switch to disable microphones for privacy

• LED Indicators: Multi-color LEDs show microphone status

• App Control: Google Home app (iOS and Android) for setup and management

• Automatic Updates: Over-the-air software updates for new features and services

Design & Build

• Display: Full-color LCD touchscreen for intuitive control and complementary information

• Fabric: Premium blended wool fabric by Kvadrat (dirt repellent, flame retardant)

• Dimensions (W × H × D): 306 × 180 × 142 mm

• Weight: 4.1 kg

In the Box

• Harman Kardon Citation 300

• Power cable

• Quick start guide

• Warranty card
