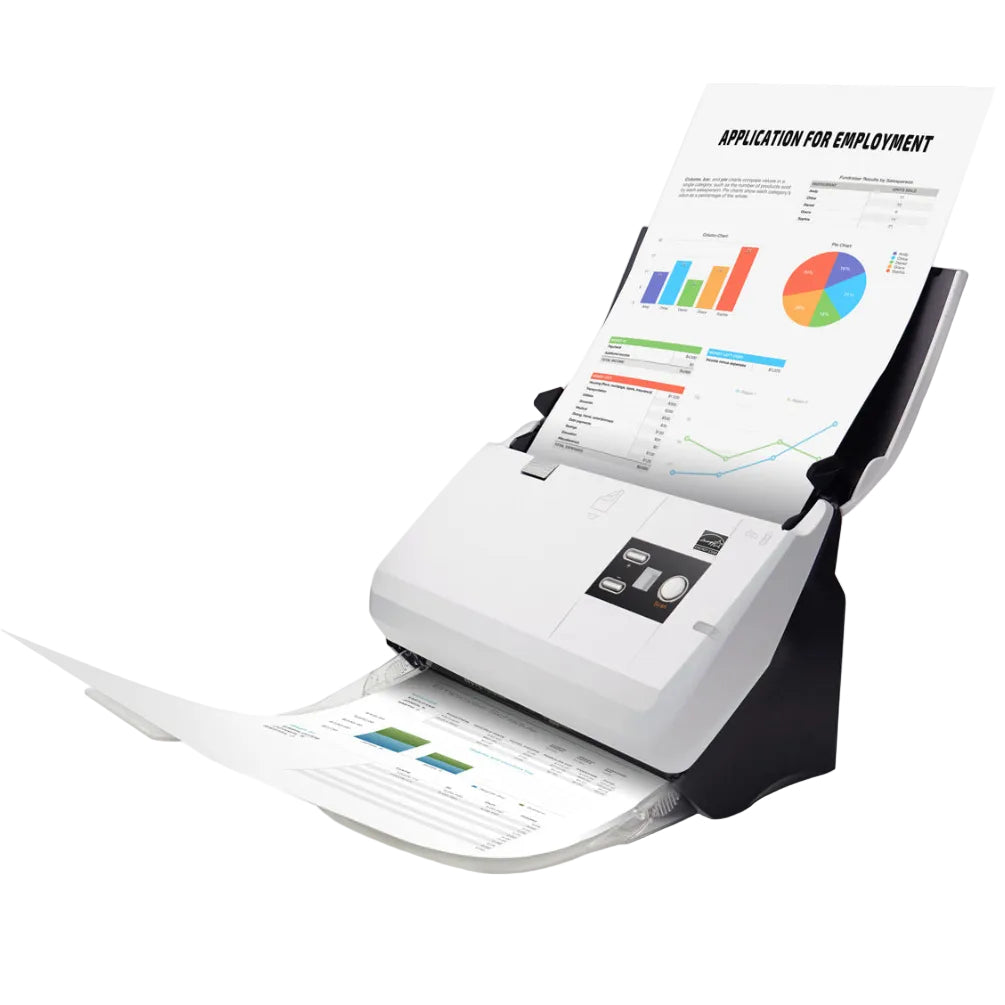

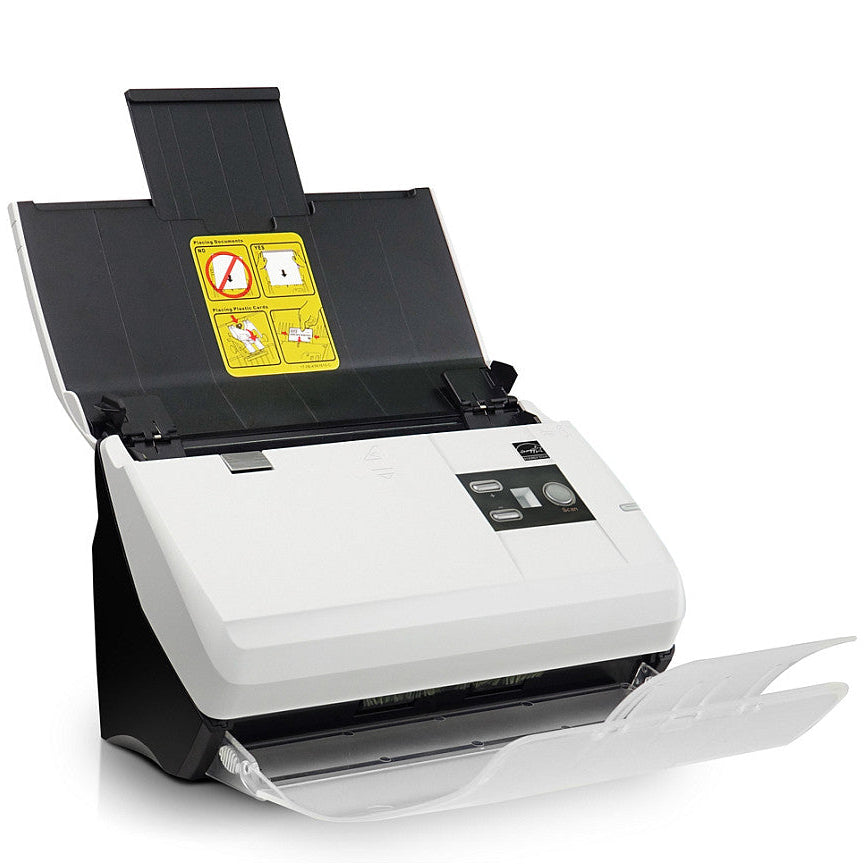

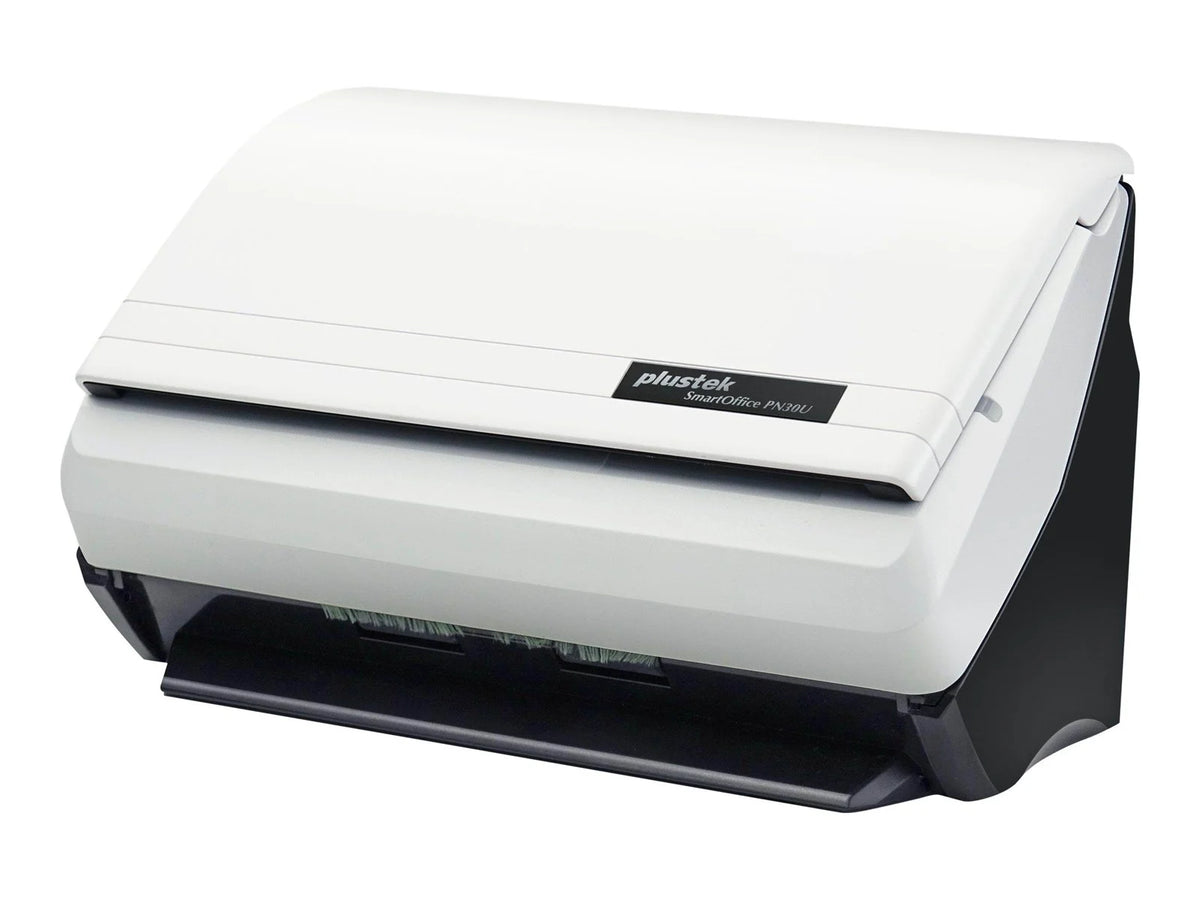

Plustek SmartOffice PN30U Network Document Scanner

This is Plustek's compact network-ready ADF scanner, built for small and medium offices that need to digitize documents and share them across a team without buying a dedicated scanner for every desk. It scans both sides of a page at 30 ppm, connects via USB or Ethernet, and has a 4,000-sheet daily duty cycle. The catch? The Ethernet connection is Windows-only, and it's strictly for loose sheets—no flatbed for bound books or fragile IDs.

Scan Performance

• Up to 30 ppm / 60 ipm (Color, Grayscale, B&W, 200 & 300 dpi, A4 Portrait) via dual CIS sensors for single-pass duplex scanning

• Optical Resolution: 600 dpi (hardware 600 × 1200 dpi; interpolated 1200 dpi)

• Color Depth: 48-bit input / 24-bit output; Grayscale: 16-bit input / 8-bit output; B&W: 1-bit

• Daily duty cycle: Up to 4,000 sheets

• Built-in ultrasonic multi-feed detection to prevent jams

Paper Handling

• ADF capacity: 50 sheets (A4/Letter, 70 g/m²), 20 business cards, or 1 plastic card (max thickness 1.2 mm)

• Maximum scan area: 220 × 5080 mm (8.66" × 200") — handles long documents

• Minimum scan area: 63.5 × 50.8 mm (2.5" × 2")

Connectivity & Workflow

• USB 2.0 Type B and RJ45 Ethernet (10/100 Mbps, LAN sharing is Windows-only)

• Scan to any PC on the network, shared folders, FTP, email (MAPI), or directly to a printer

• TWAIN compliant for integration with document management systems

• 3 action buttons (Up, Down, Scan) + 9 customizable function keys for one-touch workflows

Design & Power

• Dimensions: 263 × 128 × 148 mm, weighs 1.66 kg — compact enough for a crowded desk

• Power supply: 24 Vdc / 0.75 A

• Software: Plustek DocAction, DocTWAIN, Scanner Search Tool, and Plustek OCR (powered by ABBYY FineReader)

Operating Systems

• Windows XP / Vista / 7 / 8 / 10 / 11

• macOS 10.8.x through 14.x (newer versions supported in some regions)

• Linux compatibility available for system integrators only

In the Box

• Scanner, power adapter, software, setup guide, warranty card
