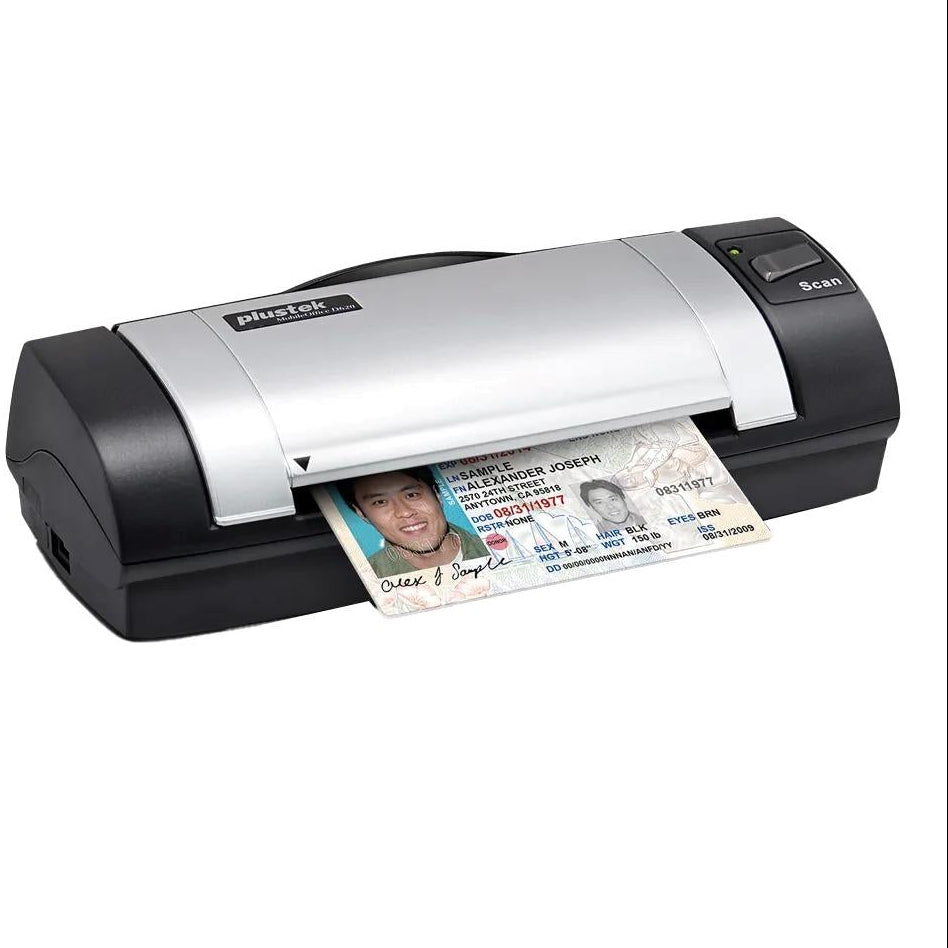

Plustek MobileOffice D620 Portable Duplex Document & ID Scanner

This is a compact, USB-powered duplex scanner built specifically for cards, IDs, receipts, and short documents. It uses dual CIS sensors to capture both sides of an ID or driver's license in a single pass without you having to flip it. The trade-off is that it maxes out at A6 width, so it won't handle standard A4 documents—but for front-desk registration, kiosks, or mobile setups, it's a rugged, space-saving workhorse.

Scan Performance

• Image Sensor: Dual CIS (Contact Image Sensor) for single-pass duplex scanning

• Optical Resolution: 600 dpi (Hardware: 600 × 600 dpi)

• Scan Modes: Color (48-bit input / 24-bit output), Grayscale (16-bit input / 8-bit output), B&W (1-bit)

• Scanning Speed: Simplex: 5 seconds; Duplex: 7 seconds (Color, 300 dpi, A6)

Paper Handling

• Scanning Area: Max 104.9 × 593.3 mm (4.13" × 23.36"); Min 40 × 45 mm (1.57" × 1.77")

• Acceptable Paper Sizes: Max 107 × 593.3 mm (4.21" × 23.36")

• Media Weight: Paper: 50 to 120 g/m²

• Card Thickness: Non-embossed up to 1.0 mm; Embossed up to 1.2 mm

• Document Return Design: Allows scanning in tight spaces without needing clearance behind the unit

Connectivity

• Interface: USB 2.0 Type Mini-B

• Power: USB-powered (5V DC) — no external power adapter required

• Protocol: TWAIN compliant

• Mobile/Standalone: No built-in Wi-Fi or standalone operation; requires a direct PC connection

Design & Power

• Action Button: Single-touch Scan button

• Dimensions (W × D × H): 194 × 75 × 55 mm (7.63" × 2.95" × 2.17")

• Weight: 0.45 kg (1 lb)

• Design: Desk-saving footprint with no rear clearance needed

Software & Compatibility

• Bundled Software: Plustek DocAction, Plustek DocTWAIN

• Built-in OCR: Plustek OCR (Powered by ABBYY FineReader) for searchable PDFs and editable files

• Supported OS: Windows 7 / 8 / 10 / 11

• Hardware Requirements: 2.0 GHz CPU or higher; 4 GB RAM minimum (8 GB recommended); 6 GB hard disk space

In the Box

• Scanner, software, setup guide, warranty card
