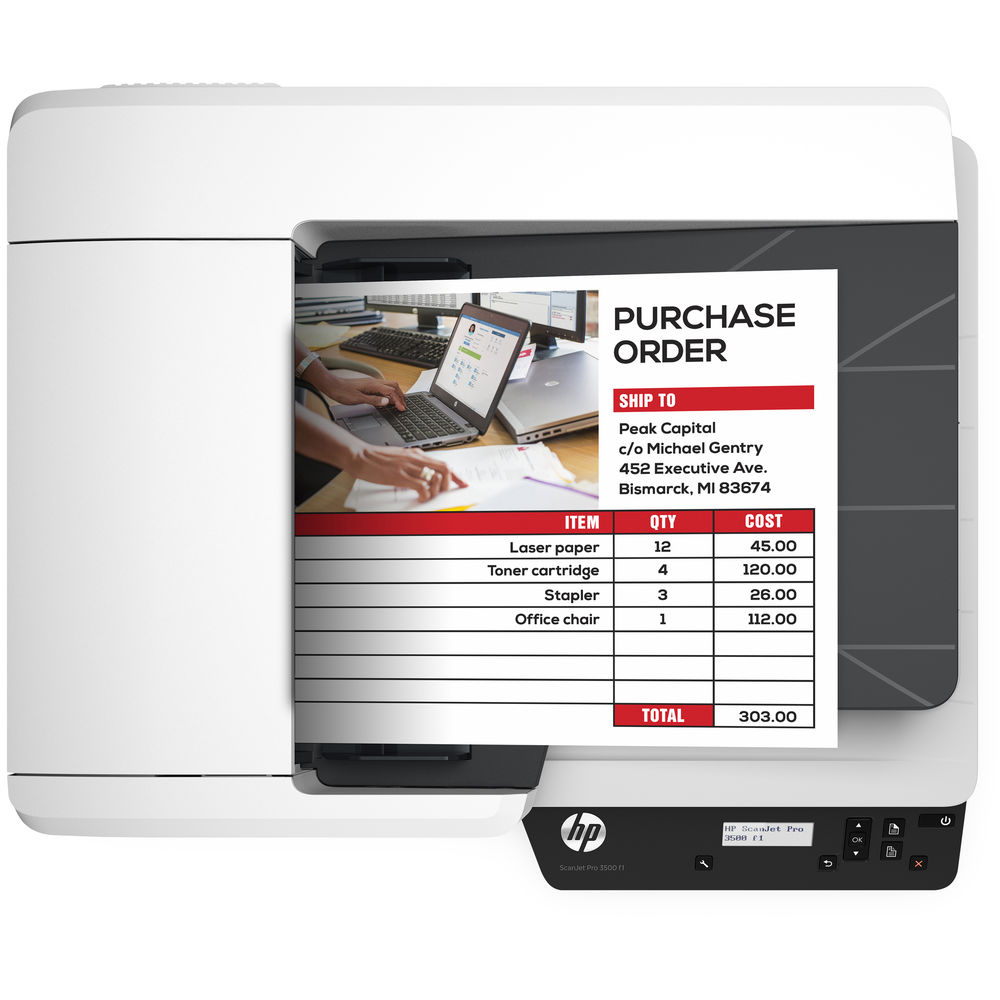

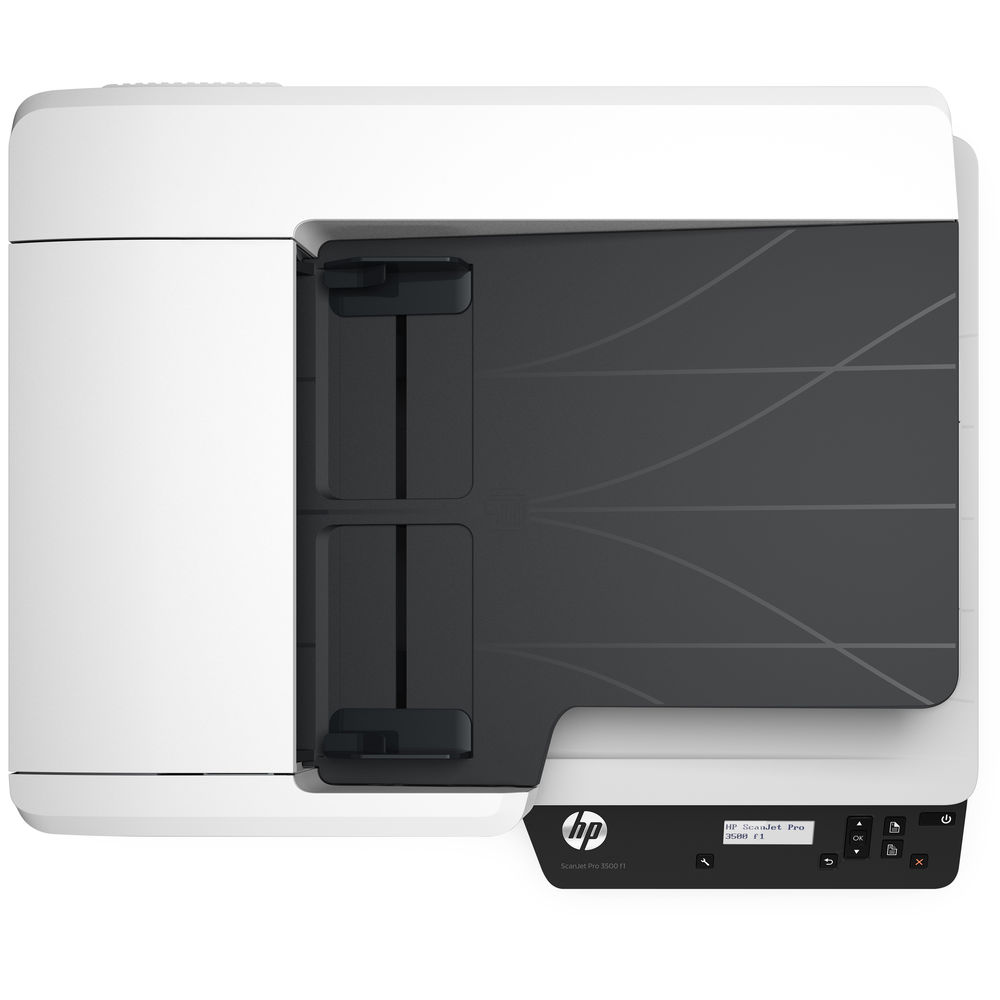

HP ScanJet Pro 3500 f1 Flatbed & ADF Document Scanner

This is HP's fast, versatile workgroup scanner, built for offices that need to digitize both loose stacks of paper and fragile bound materials. It combines a 50-sheet Automatic Document Feeder (ADF) with a traditional flatbed, so you can quickly scan multi-page reports at 25 ppm and then switch to the glass for ID cards, booklets, or stapled forms. The trade-off is that it's a strictly USB-tethered machine with a 3,000-sheet daily duty cycle, but if you need reliable, high-volume desktop scanning without the bulk of a departmental unit, this is an excellent fit.

Scan Performance

• Scanner Type: ADF and Flatbed

• Image Sensor: CMOS CIS (Contact Image Sensor)

• Light Source: LED (no warm-up time required)

• Scan Speed (ADF): Up to 25 ppm / 50 ipm (Color, Grayscale, B&W, 300 dpi) via single-pass duplex scanning

• Optical Resolution (ADF): Up to 600 dpi (color and mono)

• Optical Resolution (Flatbed): Up to 1200 dpi (color and mono)

• Color Depth: 24-bit external / 48-bit internal; Grayscale: 256 levels

• Daily Duty Cycle: Up to 3,000 pages (ADF)

Paper Handling

• ADF Capacity: 50 sheets (75 g/m²)

• Maximum Scan Area (ADF): 216 × 3,100 mm (8.5" × 122")

• Maximum Scan Area (Flatbed): 216 × 297 mm (8.5" × 11.69")

• Minimum Paper Size: 148 × 51 mm

• Media Weights: 45 to 120 g/m²

• Versatile Handling: Flatbed handles fragile items, magazines, booklets, and stapled documents; ADF handles long documents and mixed batches

• Multi-feed Detection: Yes (ultrasonic sensor to prevent jams)

Connectivity

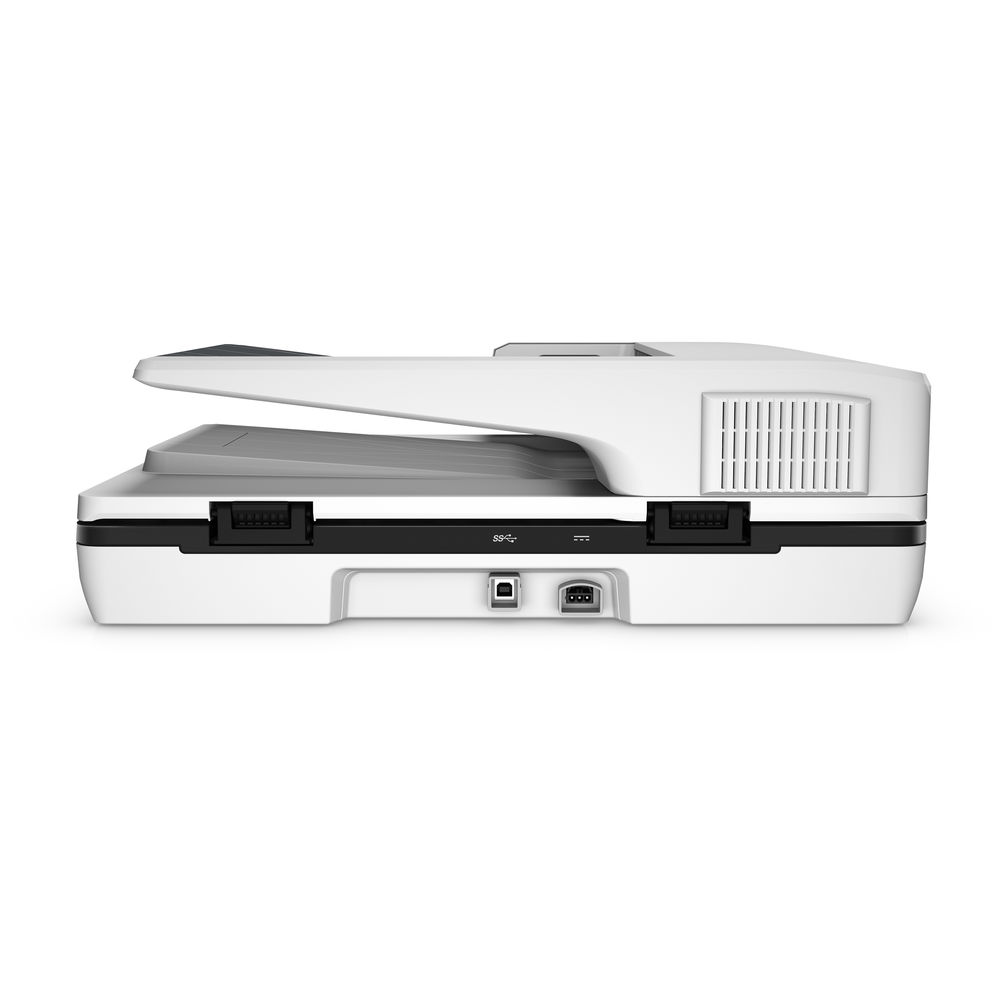

• Interface: Hi-Speed USB 3.0 (SuperSpeed)

• No built-in Wi-Fi, Ethernet, or standalone operation — requires a direct PC connection

• Protocol: TWAIN compliant for seamless integration with document management software

Design & Power

• Action Buttons: Front-panel LCD for one-touch scanning profiles

• Dimensions: 460 × 387 × 145 mm

• Weight: 5.58 kg

• Power Supply: External power adapter (100–240V~, 32Vdc, 1.56A, 50W)

• Power Consumption: 6.4 W (FB scan, 300 dpi), 14.2 W (ADF scan, 300 dpi), 1.28 W (sleep), 0.055 W (off)

• Environmental: ENERGY STAR qualified

Software & Compatibility

• Bundled Software: HP Scan software, I.R.I.S. Readiris Pro OCR

• Built-in Features: Auto exposure, auto threshold, auto detect colour, straighten content, auto orient, blank page detection/removal, merge pages, document separation, book edge scanning

• Operating Systems: Windows 7 / 8 / 8.1 / 10; macOS X El Capitan 10.11

In the Box

• Scanner, power adapter, setup guide, warranty card

• (Note: USB cable is not included.)
