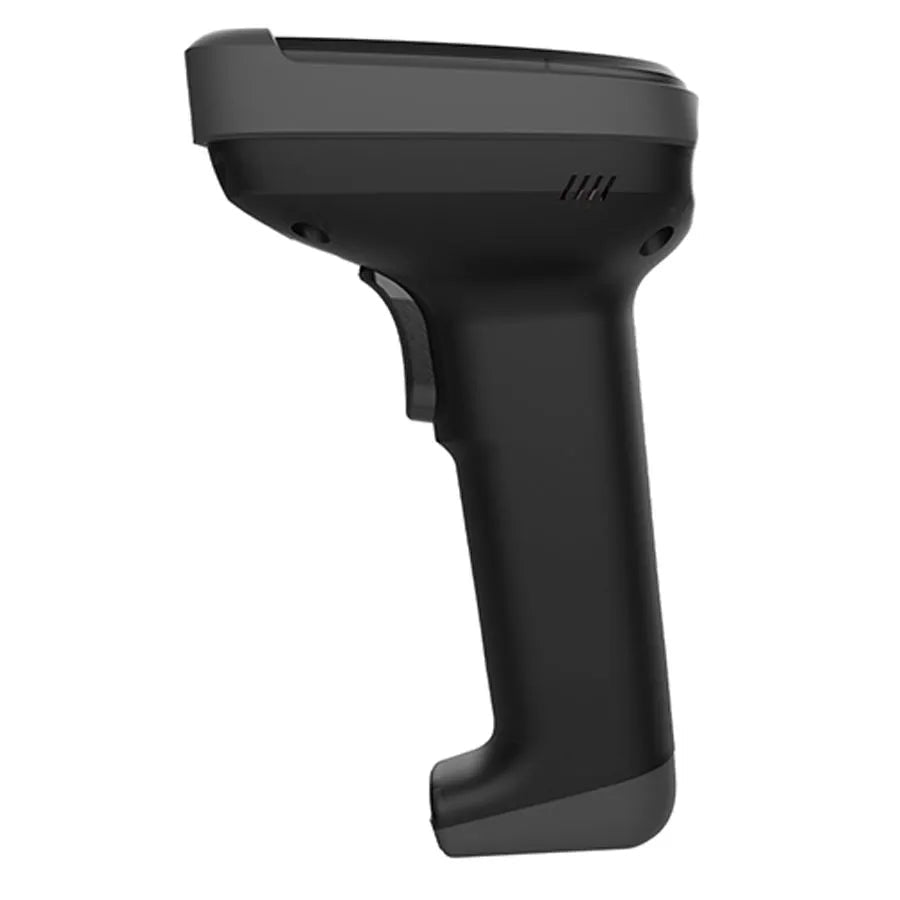

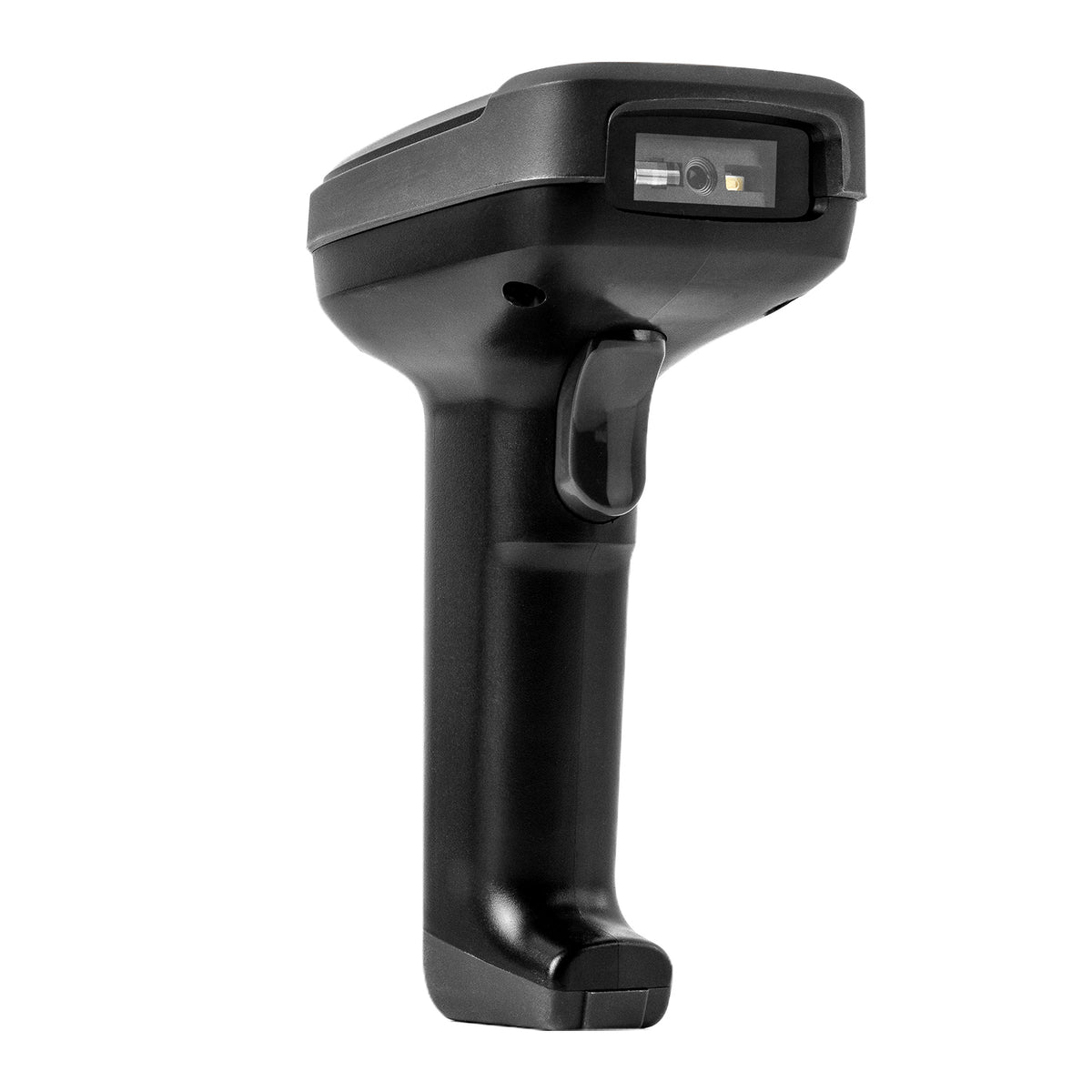

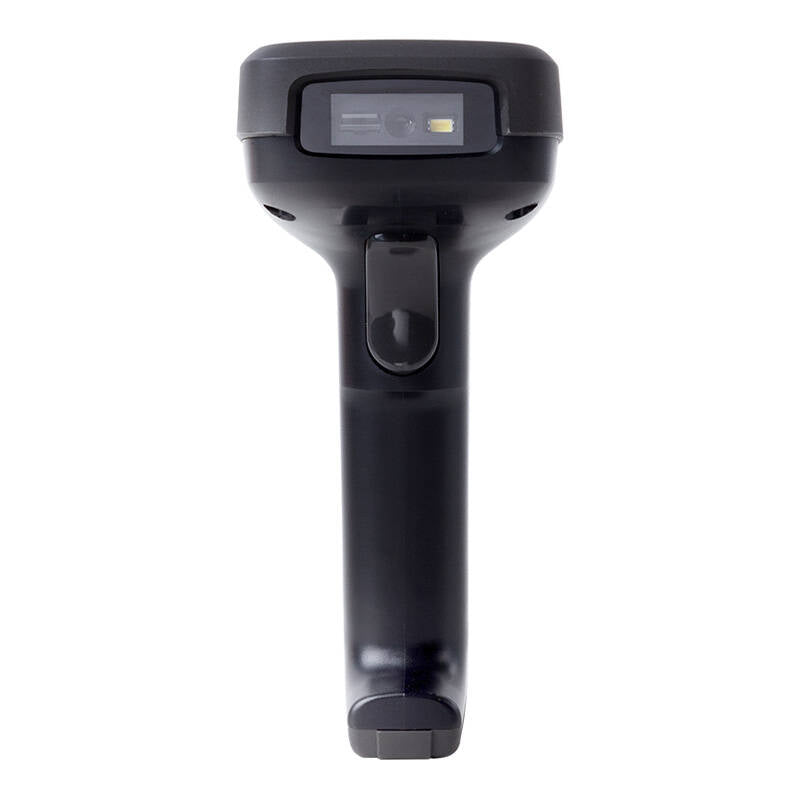

Deli E14952 1D/2D Wired Handheld Barcode Scanner

This is a versatile, plug-and-play wired barcode scanner built for retail checkouts, supermarkets, and logistics. Unlike cheaper laser models, it uses CMOS sensor technology to read both traditional 1D barcodes and modern 2D codes (like QR codes) displayed on paper or digital screens. It's fast, accurate, and rugged enough to survive 1.2-meter drops. The trade-off is that it's strictly tethered via USB, but for a busy checkout counter that needs to scan everything from product labels to customer digital coupons, it's a reliable workhorse.

Scan Performance

• Scanner Type: Handheld, wired

• Scanning Technology: CMOS Sensor

• Light Source: Red LED, White LED

• Decoding Capability: 22 types of 1D codes (AIM-128, Code 39, EAN-8/13, UPC-A/E, etc.) and 3 types of 2D codes (PDF417, Data Matrix, QR Code)

• Reading Accuracy: 1D ≥ 4.7 mil, 2D ≥ 10 mil

• Scanning Depth: 10 cm to 38 cm (100–380 mm)

• Scan Angle: Vertical ±18°, Horizontal ±15°

• Motion Tolerance: Up to 90 cm/s

• Scan Modes: Manual trigger or continuous scanning

Connectivity & Interface

• Interface: USB (Wired)

• Cable Length: 1.8m straight cable

• Protocol: USB HID (Keyboard Emulation) for plug-and-play use

• Compatibility: Windows 7/8/10/XP, macOS, Linux, Android, iOS

Design & Power

• Dimensions: 163 × 95 × 71 mm

• Weight: 126 g (net)

• Material: ABS plastic

• Color: Black

• Power Source: USB bus-powered (DC 5V ± 0.5V)

• Power Consumption: 185 mA (operating), 210 mA (peak), ≤ 50 mA (standby)

• Durability: Shock-resistant design, survives 1.2m free-fall drop test

• Feedback: Built-in buzzer and LED indicator for successful scans

Operating Environment

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -20°C to 60°C

• Operating Humidity: 5% to 90% (non-condensing)

In the Box

• Barcode Scanner, User Manual
